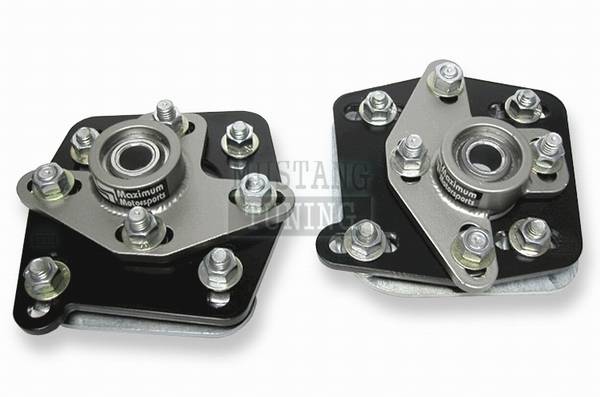

Ford Mustang Maximum Motorsports Caster & Camber Plates - 47000

Maximum Motorsports has improved on what was already the best Caster/Camber plate available. Their latest patented design is even tougher than before and now has a lifetime warranty against bearing failure and plate bending. That's right--if you can bend it, break it, or otherwise wear it out, Maximum Motorsports will repair or replace that component for free. This warranty applies to the original retail purchaser of their 4-bolt Caster/Camber plates.The Maximum Motorsports Caster/Camber Plates address the issues of obtaining proper alignment, both static and dynamic, and achieving high performance handling.MM's Caster/Camber plates are unique:
  • MM's plates are double adjustable. They have separate adjusting slots to change caster and camber independent of one another.
  • MM plates double the range of motion available for camber adjustment compared to stock.
  • The range of motion available for caster adjustment is not limited by the design of the MM plate, but rather by the physical limitations of the strut tower.
  • The MM plates use a spherical bearing instead of a urethane bushing. A spherical bearing accommodates the required motion without binding. Urethane binds and puts a bending load on the top of the strut shaft, which may cause your strut top to break.
  • The steel construction and spherical bearing in MM's plates provide a non-deflecting strut mount. With the absence of deflection, you will get better performance because of a quicker and more direct steering response.
  • MM's plates include progressive rate urethane bump stops which softens the impact when the suspension bottoms out.
  • MM plates allow the use of the factory dust cover.
  • Finished with durable powdercoating for long lasting protection.
  • MM's plates provide the greatest increase in suspension travel possible for lowered cars.
  • All MM Caster/Camber plates are TIG welded.
  • All MM Caster/Camber plates are suitable for use with coil-over conversion kits.
  • Was: $224.99
    Sale: $202.99


    Fits: 1994-2004 Ford Mustang


    Professional Installation is Recommended.

    Ford Mustang Maximum Motorsports Caster & Camber Plates - 47000 Fits:
  • 1994-2004 Ford Mustang
