TEIN FLEX COIL OVER DSA00-6USS1

8727

TEIN has used its years of experience in various motor sports to produce a kit that provides the ultimate balance between comfort and performance. The FLEX Damper kit features the latest technology for all drivers who are seeking that comfort and performance, but also want the adjustability for fine suspension tuning. TEIN has incorporated separate spring perch height and shell case length adjustment, which allows for more suspension tuning. The FLEX damper kit includes pillow ball upper mounts, which increase steering response, 16 levels of damping force adjustment, and is compatible with the EDFC (Electronic Damping Force Controller) for added convenience and on-the-fly adjustability.

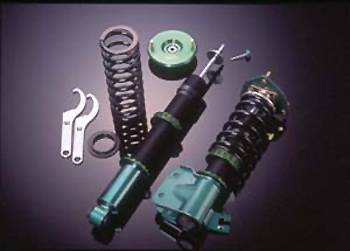

The Type FLEX damper system includes: height adjustable shocks struts, mains springs, lower spring seats, spring seat locks, rubber bump stops, dust covers, hooks spanners,


Features
  • Full-length adjustment system for separate ride height and spring pre-load adjustment
  • 16-way manual damping force adjustment knob (compression and rebound together)
  • Short stroke design for improved comfort and performance
  • Aluminum spring seats and locks for trouble-free adjustment
  • Teflon coated shell case for increased durability
  • Powder coated lower bracket for long lasting finish

Specifications
  • Spring Rate- Front 504 lbs per in (9 kg per mm) Rear 224 lbs per in (4 kg per mm)
  • Ride Height- Front -3.2in (-81mm) Rear -2.4in (-61mm)
  • Upper Mount Pillow Ball
Was: $1,744.94
Sale: $1,535.55
Qty:

Description

Flex Damper System
Drops 3.2/2.4 inches front/rear
Spring Rate: 505/224 lbs/in front/rear

Installation

Application Notes

  • RR Fork

Applications

  • 1992-1995 HONDA CIVIC
  • 1993-1997 HONDA CIVIC DEL SOL
  • 1994-2001 ACURA INTEGRA
