TEIN BASIC COIL OVER DSG72-LUAS2

10314

The TEIN Type BASIC damper system offers a high quality full coil-over system with added performance and comfort at an entry level price. The BASIC damper is recommended for drivers who are seeking a real coil-over kit instead of sleeve-over + damper setups. Each type BASIC damper is designed vehicle-specific and developed exclusively for US model vehicles. The BASIC damper uses technology and manufacturing processes as TEINs most sophisticated damper system, but at a fraction of the cost. In addition, the shell case of the damper has been shortened from OEM length to accommodate more piston travel at lower ride heights.

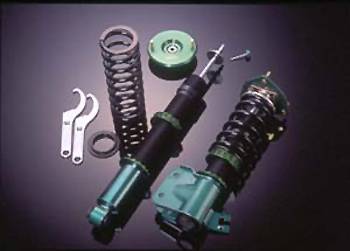

The Type BASIC damper system includes- height adjustable shocks or struts, main springs, lower spring seats, seat locks, thrust washers, rubber bump stops, dust covers, hook spanners, and instruction manual. Strut type suspensions come with upper spring seat (depending on application).

Features

  • Shortened casing to for more piston travel at lower ride heights
  • High performance and cost effective
  • Coated and painted for rust prevention
  • Exclusively designed for US-market models
  • Serviceable, including rebuilding/re-valving, available from TEIN

Specifications
  • Spring Rate Front 392 lbs per in (7 kg per mm) Rear 532 lbs per in (9.5 kg per mm)
  • Ride Height Front -1.4in (-34.5mm) Rear -0.9in (-22.5mm)
  • Upper Mount: OEM
Was: $1,086.99
Sale: $955.99
Qty:

Description

Drops 1.4/.9 inches front/rear
Spring Rate: 392/532 lbs per inch front/rear
Does not fit M3 or AWD.

Installation

Application Notes

  • 2 , 4-door , does not fit M3 or 4WD or wagon

Applications

  • 2001-2005 BMW 330I
  • 2001-2005 BMW 325I
  • 2000 BMW 323CI
  • 2000 BMW 323I
  • 2000 BMW 328CI
  • 2000 BMW 328I
  • 2001-2005 BMW 325CI
  • 2001-2005 BMW 330CI

Details

Shipping Information

  • Item Requires Shipping
  • $39.99
