Bolt On Hidden Tow Hitch - 2776147

556722

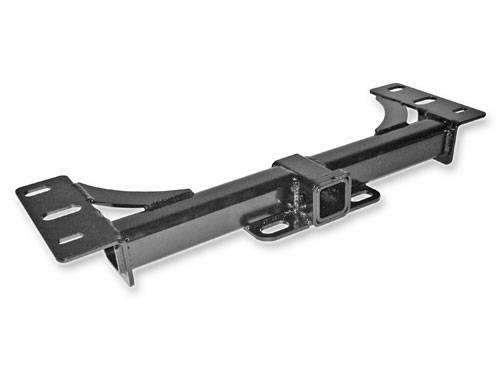

Bolt On Hidden Tow Hitch

? All Sir Michaels tow hitches are designed to fit behind Sir Michaels steel roll pans. Altough some hitches will work with other manufactures roll pans.

? This hitch will bolt to the factory holes on each side of the frame.

? On some ½ , ¾& 1tons the leaf spring hanger bracket will need to be removed and the hole slotted for the thickness of the hitch then reattached after the hitch is installed.

? Install the hitch from the bottom, up to the frame using the grade 8 hard ware supplied. Your hitch will bolt to the bottom side of the frame rails.

Once all bolts are installed, tighten them down to the factory specs. Your hitch can now be accessed behind the license plate with a license plate flip, sold separately.

? Sir Michaels does not supply a hitch wire plug and tow receiver due to the many different connections and drops. Most trailer and auto parts will carry those items.

? Note this hitch is not designed for use with lifted trucks or with use of drop receivers larger than a four inch drop,

? Use of larger drop receiver will void warranty.

? Short beds using a hidden hitch will need to down sizeyour spare tire.

To find the maximum size spare tire install your hitch and spare tire relocater:
Extend the tire hoist cable and take a measurement from the cable to the back of hidden hitch then from hoist cable to the rear end housing or sway bar which ever is the closer to the cable. The shortest distance times two and subtract four will give you the maximum over all tire size you can run.

[SIR2776147]
Not Available
Was: $221.99
Sale: $210.99

Installation

Bolt On Installation and ships with installation hardware.

Bolt On Hidden Tow Hitch Fits:
? 1973-1987 Chevrolet C10 / C20 / C30 C10 / C20 / C30 Class 3, 5,000lbs
? 1973-1987 GMC C10 / C20 / C30 C10 / C20 / C30 Class 3, 5,000lbs

Details

  • 556722
  • 556722
  • Sir Michaels
  • New
