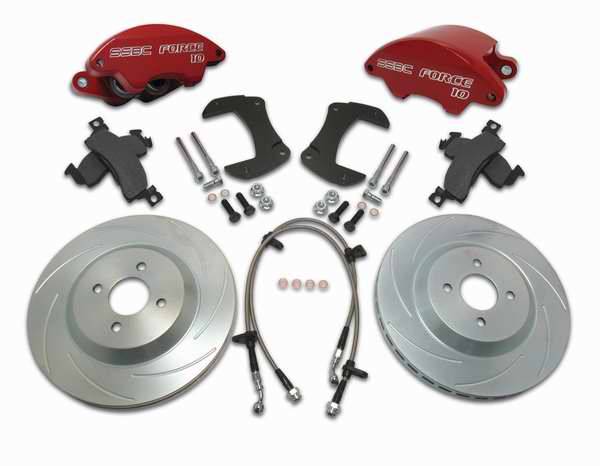

SSBC Disc Brake Kit with Force 10 Super-Twin HD 2-Piston Aluminum Calipers & 13 Inch Rotors - Front - A160-3
565046
Disc brake kit with Force 10 SuperTwin HD 2-Piston Aluminum calipers and 13" rotors.
Specifications:
Minimum Wheel Size: 18"
Caliper Name: Force 10 SuperTwin HD
Number of Pistons: 2
Piston Size: 43mm
Material: Aluminum
Caliper Standard Finish: Clear Anodized
Caliper Optional Finished: Polished or Powder Coated
Rotor Diameter: 13
Rotor Thickness: 1.125"
Rotor Venting: Directional (curved vane)
Rotor Standard Finish: Slotted and Plated
Rotor Optional Finishes: None
Additional Features:
All hardware included.
Calipers come with clear anodized finish. Optional polishing or powder-coating available.
Includes 13 inch Turbo slotted rotors with Xtra Life plating.
Includes Force 10 SuperTwin HD 2-Piston aluminum calipers.
Performance Disc Brake Rotors
Rotors are an integral component of any disc brake system. When you apply the brakes, your vehicle�s energy is turned into heat that the rotors absorb. It is important to keep them as cool as possible while braking in order to prevent brake fade and to maximize braking performance.
Venting:
All of our rotors are vented, meaning internal vanes inside the rotor help cool it by forcing air through the rotor. This helps dissipate the heat generated when you apply the brakes, thus reducing brake fade and increasing braking performance. There are 2 types of venting: uni-directional (or straight vane) and directional (or curved vane).
Uni-directional (straight vane) rotors do not have a specific left or right side. A uni-directional rotor can be used on either the left or right side of your vehicle. (If you have your uni-directional rotors slotted, then there will be a specific left and right rotor due to the slots.)
Directional (curved vane) rotors do have a specific left and right side. The vanes inside are curved to facilitate the maximum amount of air flowing through the rotor. These rotors need to be installed on a specific side of the vehicle so maximum airflow is achieved. If you put a left directional rotor on the right side, you will hamper the cooling effect that the venting provides. (Please note: for our kits that come with uni-directional rotors, there is no option to have directional rotors.)
Rotor Finish:
â?¢ Standard Finish
Our rotors are available with 3 different finishes. Our basic rotors have just a standard finish. This is the basic finish from the factory.
Turbo Slotted and Xtra Life Plated
All of our kits that come with the standard finish rotors can be upgraded to include Turbo slotting and Xtra Life plating.
Our Turbo slots are milled with CNC machine precision. The slots, like the venting, help cool the rotors. When the brakes are applied, heat and gas are generated between the pads and rotors. As the rotors get hotter, this gas can actually push the pads away from the rotors, which results in brake fade. The slots provide a space for this heat and gas to escape, thus improving braking performance. The slots also clean the pads, removing any debris that might have accumulated. This too helps your braking performance. We Turbo slot both the inboard and outboard sides of the rotors.
In our Xtra Life plating process, we add layers of a protective finish to the entire surface of the rotor. This will help prevent the areas where the pads do not come into contact with the rotor from rust and corrosion, all while maintaining that �new� look.
Big Bite Cross Drilled, Turbo Slotted and Xtra Life Plated
Most of our kits that come with the standard or Turbo slotted and Xtra life plated rotors can be upgraded to our new Big Bite cross drilled rotors. These rotors include all the features of our Turbo slotted and Xtra Life plated rotors PLUS all the added benefits of cross drilling
Force 10 2-Piston Front Disc Brake Kits
One of our most popular line of kits, these feature either our Force 10 SportTwin or Force 10 SuperTwin 2-piston aluminum calipers.
â?¢ 2-piston design provides more even clamping power than a single-piston caliper, resulting in less pad deflection and better braking performance Calipers come standard with a clear anodized finish; optional powder-coating or polishing available
â?¢ Kits are complete with rotors, brackets, pads, master cylinder, spindles, seals, bearings, splash shields, lines and hardware (exact contents vary among kits)
â?¢ Rotors available with optional Turbo slotting and Xtra Life plating (standard in some kits)
â?¢ Some kits available in both power and non-power (depending on the application)
â?¢ Some kits available with 2" drop spindles (depending on the application)
â?¢ For the SportTwin caliper, see Force 10 single-piston rear kits for matching rear brakes
â?¢ For the SuperTwin caliper, see Force 10 single-piston or Force 10 2-piston rear kits for matching rear brakes
[SSBCA1603]
Specifications:
Minimum Wheel Size: 18"
Caliper Name: Force 10 SuperTwin HD
Number of Pistons: 2
Piston Size: 43mm
Material: Aluminum
Caliper Standard Finish: Clear Anodized
Caliper Optional Finished: Polished or Powder Coated
Rotor Diameter: 13
Rotor Thickness: 1.125"
Rotor Venting: Directional (curved vane)
Rotor Standard Finish: Slotted and Plated
Rotor Optional Finishes: None
Additional Features:
All hardware included.
Calipers come with clear anodized finish. Optional polishing or powder-coating available.
Includes 13 inch Turbo slotted rotors with Xtra Life plating.
Includes Force 10 SuperTwin HD 2-Piston aluminum calipers.
Performance Disc Brake Rotors
Rotors are an integral component of any disc brake system. When you apply the brakes, your vehicle�s energy is turned into heat that the rotors absorb. It is important to keep them as cool as possible while braking in order to prevent brake fade and to maximize braking performance.
Venting:
All of our rotors are vented, meaning internal vanes inside the rotor help cool it by forcing air through the rotor. This helps dissipate the heat generated when you apply the brakes, thus reducing brake fade and increasing braking performance. There are 2 types of venting: uni-directional (or straight vane) and directional (or curved vane).
Uni-directional (straight vane) rotors do not have a specific left or right side. A uni-directional rotor can be used on either the left or right side of your vehicle. (If you have your uni-directional rotors slotted, then there will be a specific left and right rotor due to the slots.)
Directional (curved vane) rotors do have a specific left and right side. The vanes inside are curved to facilitate the maximum amount of air flowing through the rotor. These rotors need to be installed on a specific side of the vehicle so maximum airflow is achieved. If you put a left directional rotor on the right side, you will hamper the cooling effect that the venting provides. (Please note: for our kits that come with uni-directional rotors, there is no option to have directional rotors.)
Rotor Finish:
â?¢ Standard Finish
Our rotors are available with 3 different finishes. Our basic rotors have just a standard finish. This is the basic finish from the factory.
Turbo Slotted and Xtra Life Plated
All of our kits that come with the standard finish rotors can be upgraded to include Turbo slotting and Xtra Life plating.
Our Turbo slots are milled with CNC machine precision. The slots, like the venting, help cool the rotors. When the brakes are applied, heat and gas are generated between the pads and rotors. As the rotors get hotter, this gas can actually push the pads away from the rotors, which results in brake fade. The slots provide a space for this heat and gas to escape, thus improving braking performance. The slots also clean the pads, removing any debris that might have accumulated. This too helps your braking performance. We Turbo slot both the inboard and outboard sides of the rotors.
In our Xtra Life plating process, we add layers of a protective finish to the entire surface of the rotor. This will help prevent the areas where the pads do not come into contact with the rotor from rust and corrosion, all while maintaining that �new� look.
Big Bite Cross Drilled, Turbo Slotted and Xtra Life Plated
Most of our kits that come with the standard or Turbo slotted and Xtra life plated rotors can be upgraded to our new Big Bite cross drilled rotors. These rotors include all the features of our Turbo slotted and Xtra Life plated rotors PLUS all the added benefits of cross drilling
Force 10 2-Piston Front Disc Brake Kits
One of our most popular line of kits, these feature either our Force 10 SportTwin or Force 10 SuperTwin 2-piston aluminum calipers.
â?¢ 2-piston design provides more even clamping power than a single-piston caliper, resulting in less pad deflection and better braking performance Calipers come standard with a clear anodized finish; optional powder-coating or polishing available
â?¢ Kits are complete with rotors, brackets, pads, master cylinder, spindles, seals, bearings, splash shields, lines and hardware (exact contents vary among kits)
â?¢ Rotors available with optional Turbo slotting and Xtra Life plating (standard in some kits)
â?¢ Some kits available in both power and non-power (depending on the application)
â?¢ Some kits available with 2" drop spindles (depending on the application)
â?¢ For the SportTwin caliper, see Force 10 single-piston rear kits for matching rear brakes
â?¢ For the SuperTwin caliper, see Force 10 single-piston or Force 10 2-piston rear kits for matching rear brakes
[SSBCA1603]
Was:
$1,400.99
Sale:
$1,167.99
Description
Vented Rotors Improve Air Flow!
Durable Aluminum Calipers
Fits 2WD & 4WD
Durable Aluminum Calipers
Fits 2WD & 4WD
Installation
Professional Installation is Recommended.
Disc Brake Kit with Force 10 Super-Twin HD 2-Piston Aluminum Calipers & 13 Inch Rotors - Front Fits:
â?¢ 2002-2007 Saturn Vue (2WD)
â?¢ 2002-2007 Saturn Vue (AWD)
Disc Brake Kit with Force 10 Super-Twin HD 2-Piston Aluminum Calipers & 13 Inch Rotors - Front Fits:
â?¢ 2002-2007 Saturn Vue (2WD)
â?¢ 2002-2007 Saturn Vue (AWD)
